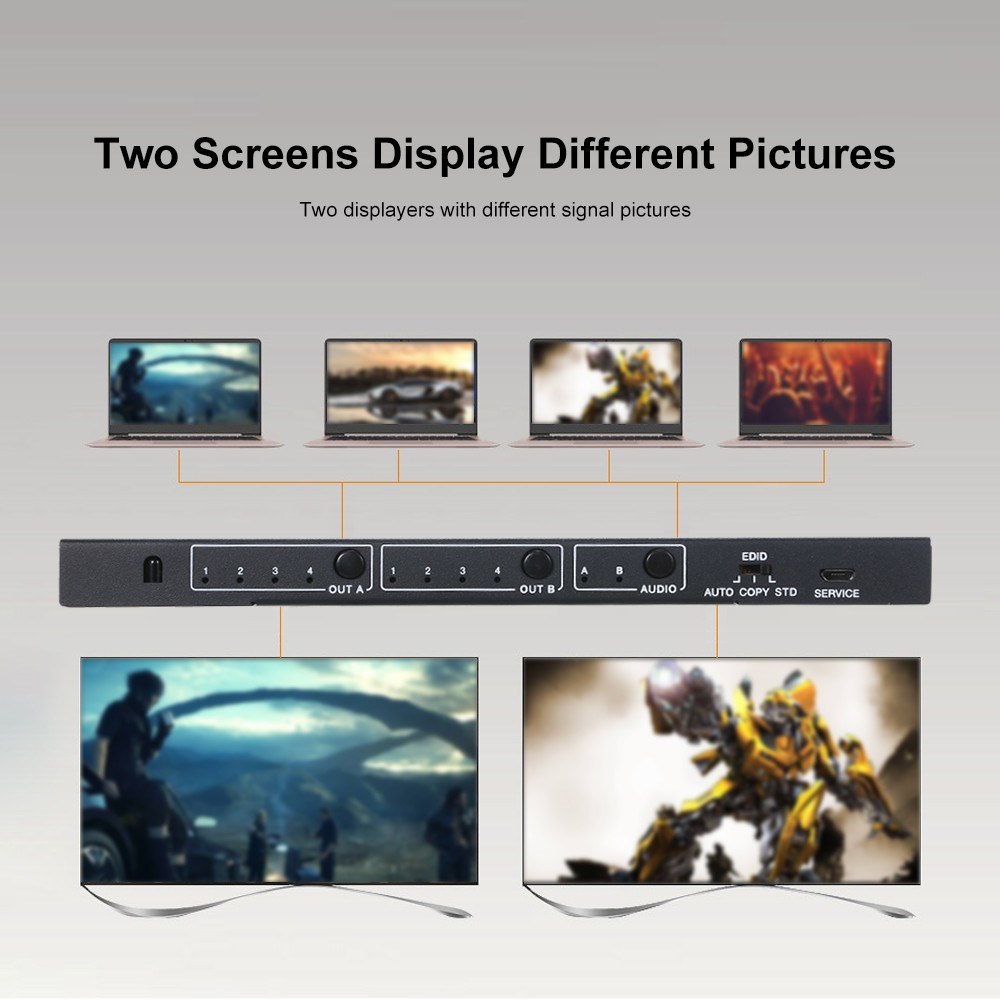

The 4*2 HD matrix simultaneously four routes HD sources to two HD displays. It supports resolution up to 4K2K@50/60Hz YCbCr 4:2:0 and HDCP 2.2. This product supports audio extract from output A or output B port to optical and analog output and can be selected AUTO, COPY and STD modes EDID control. Flexible control through on-panel btutons. IR remote control.
Features:
HD 1.4, HDCP2.2/HDCP1.4 and DVI 1.0 compliant.
Support HD resolution. The maximum up to 4K2K@50/60Hz (4:2:0).
Support digital and analog audio extract output from output A or output B.
EDID can be selected AUTO, COPY and STD mode VIA SELECTOR ON PANEL.
Support analog audio PCM2.0.
Support optical audio pass-through format including LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.
Control is via on-panel button and IR remote control.
Specification:
Plug type: US/EU/UK(optional)
HD compliance: HD 1.4b
HDCP: HDCP 2.2 and HDCP 1.4
Video resolution: 480P@60Hz, 720@60Hz, 4080P@60Hz,1080P 3D@60Hz,4K24/30Hz,4K2K@50/60Hz(4:2:0)
Color spcae: RGB/YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2
Color depth: 8-bit, 10-bit, 12-bit
HD audio formats: PCM2.0/5.1/7.1CH, Dolby 5.1, Dolby True HD, DTS HD
L/R Audio formats: Analog stereo 2CH
Optical audio formats: LPCM[2.0/2.1]CH, Dolby 5.1,Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD protection: HUman-body model: ±8kV(Air-gap discharge),±4kV (Contact discharge)
Item size: 19.8 * 7.8 * 1.6cm / 7.80 * 3.07 * 0.63in(L * W * H)
Item weight: Approx.398 g / 14.04oz
Package size: 25 * 18 * 5.5cm / 9.84 * 7.09 * 2.17in(L * W * H)
Package weight: 600g / 21.16oz
Package list:
1 * Matrix splitter
1 * Power Adapter
1 * IR remote control
1 * User manual
