Features:
*The antenna has a good consistency, stable performance, and strong anti-interference ability.

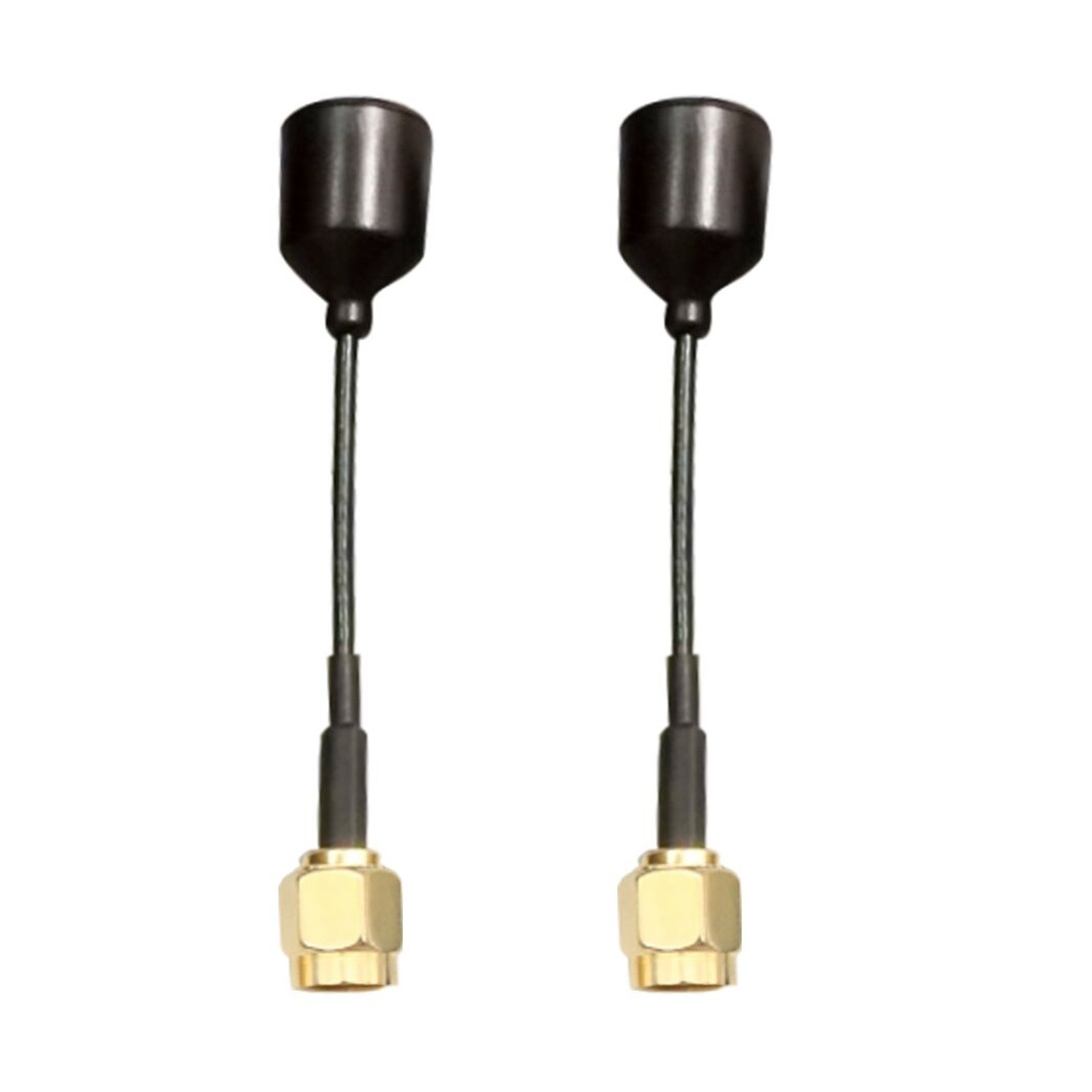

*High precision and durable LDS 3D Capsule antenna. (The traditional four-leaf clover antenna may break at the weld in the aircraft crash)
*The fuselage is made of imported PC + ABS material, which can withstand high strength impact.
*Flexible cable, easy to bend and install. Specially designed for RC FPV Racing Drone DIY.
*7 types (58mm/73mm SMA male; 58mm/73mm RP-SMA male; Angle MMCX; Straight MMCX; UFL) for your option, and Custom MMCX angle connector, compatible with DJI Air Unit.
Specification:
Brand name: Turbowing
Item number: LDS 3D Capsule antenna
Shell material: PC+ABS
Center frequency: 5.8 GHZ
Gain: 2.5 Dbi
Bandwidth: 5.5-6GHz
Connector: SMA male /RP-SMA male/Angle MMCX/Straight MMCX/UFL (Optional)
58mm SMA Male: 4.6g
58mm RP-SMA Male: 4.5g
73mm SMA Male: 4.7g
73mm RP-SMA Male: 4.7g
58mm straight MMCX: 2.4g
58mm angle MMCX: 2.4g
58mm UFL: 2.0g
Package information:
Package size: 7.4 * 5 * 2
Package weight: 15g
Package list: 2 * 58mm SMA Male antenna
PS: There could be some deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding.
