RadioLink AT9S 2.4GHz 10CH Remote Control System Transmitter Mode2 & R9DS 10CH Receiver for RC Drone Aircraft Helicopter Multicopter

USD 159.99
Stock 0
Number
RadioLink AT9S 2.4GHz 10CH Remote Control System Transmitter Mode2 & R9DS 10CH Receiver for RC Drone Aircraft Helicopter Multicopter

Feature:
Fast response, 3ms only, which is much less than the average 20ms even 9 channels act synchronously.
English, Spanish, Deutsch, French, Italiano, Turkish, Russian & Korean menu can be switched, full types specialized helicopter 8 swash plate modes, fixed wing 2 airfoils 3 rears, gliders 4 airfoils and 2 rears, multi-copter menu.
DSSS and FHSS spread-spectrum technology working synchronously,16 channels pseudo random frequency hopping,QPSK modulation ensure excellent anti-interference performance.
Programmable mix control. Basic menu, advanced menu, graphic view for verities of throttle and servo curve.
Support S-BUS, PPM and PWM signal.

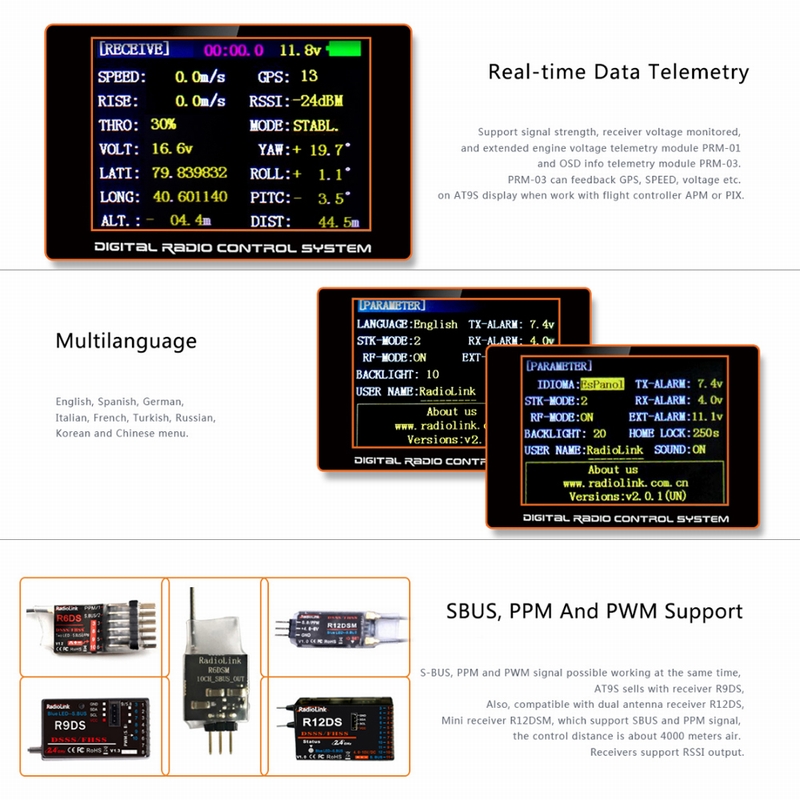

Receiver integrates signal strength and voltage telemetry sensor.
Both R10DS and R9DS support extended engine voltage telemetry module PRM-01 and OSD info telemetry module PRM-02. PRM-02 can feedback GPS, SPEED, voltage etc. on
AT9S/AT10 display when work with flight controller APM or PIX.
4096 section precision, 0.25us per section, servo anti-shake rudder.
Vibration alarm.
Support USB online upgrade, the upgrade firmware V1.3.2 add CAR and BOAT model type.
Four VR switches, three three-gear switches, four two-gear switches, a reset trainer switch. Support multiple aerial control mode and PTZ control.

AT9S Specification:
Size: 183 * 100 * 193mm
Weight: 0.88kg
Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)
Channel bandswidth: 5.0MHz
Spread spectrum: DSSS & FHSS
Adjacent channel rejection: >38dbm
Transmitter power: <100mW (20dbm )
Operating current: <90mA
Operating voltage: 7.4~18.0V
Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
Channel: 9 channels
Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator model: under the simulator model the transmitter action turn off, change to power saving model
Screen: 2.8 inches 16 colorful screen, 240 * 320 pixels
Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS

R9DS RX Specification:
Max input voltage: 10V
Current: 38-45mA (Voltage input: 5V)
Section precision 4096
Size: 41 * 23 * 14mm
Weight: 10.7g
Please notice: the R9DS can work with radiolink AT9S AT9 AT10 transmitter, but only work with AT9S can have DSSS & FHSS spread spectrum function.

Package information:
Package size:  29.5 * 18.5 * 6cm / 11.6 * 7.3 * 2.4in
Package weight: 682g / 1.5lb
General box package

Package List:
1 * Radiolink AT9S 10ch transmitter ( Mode 2: Left Hand throttle )
1 * Radiolink R9DS Receiver
1 * Manual
