iSDT BG-8S Color Display Dual Support BattGO Smart Battery Checker for LiHv LiPo LiFe NiMH NiCd Pb Battery

HKD 469.72
farbe
Stock 28
Number

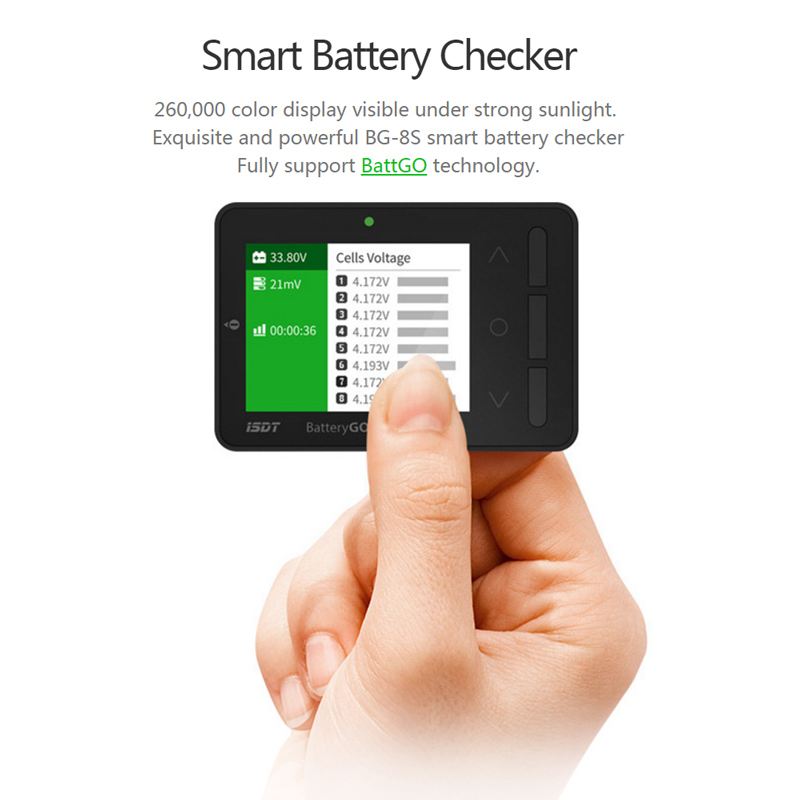

260,000 color display visible under strong sunlight. Exquisite and powerful BG-8S smart battery checker fully support BattGO technology. Very smart choice for rc fans.








Feature:
260,000 color display visible under strong sunlight

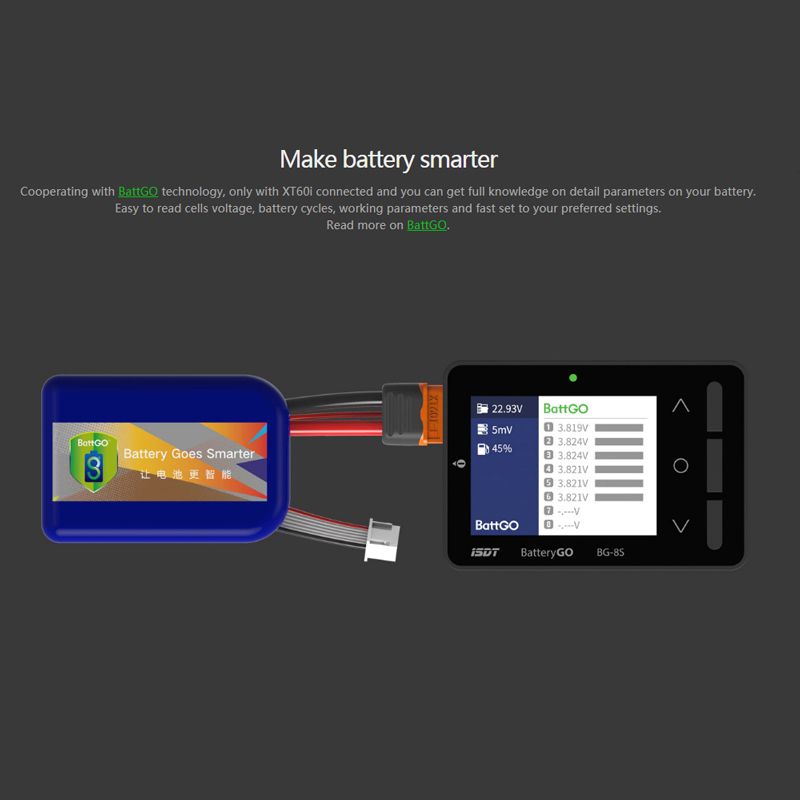

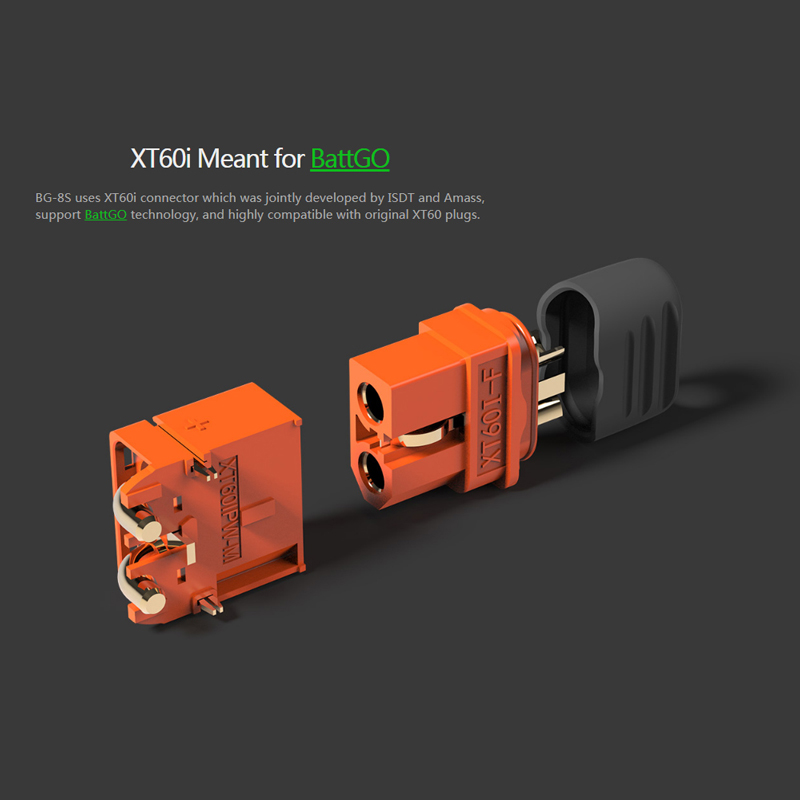

Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your battery

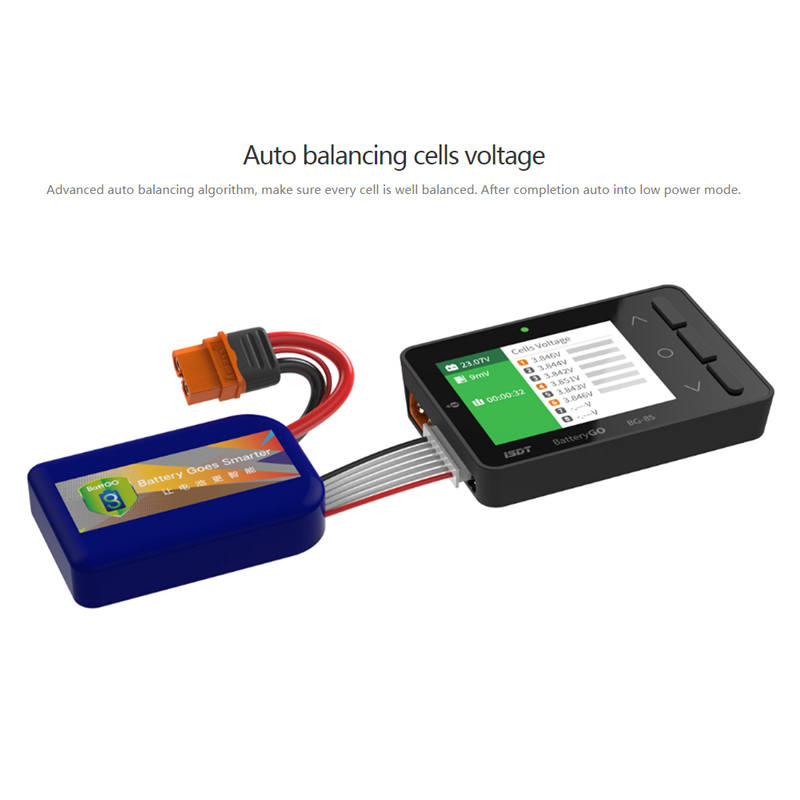

Advanced auto balancing algorithm, make sure every cell is well balanced

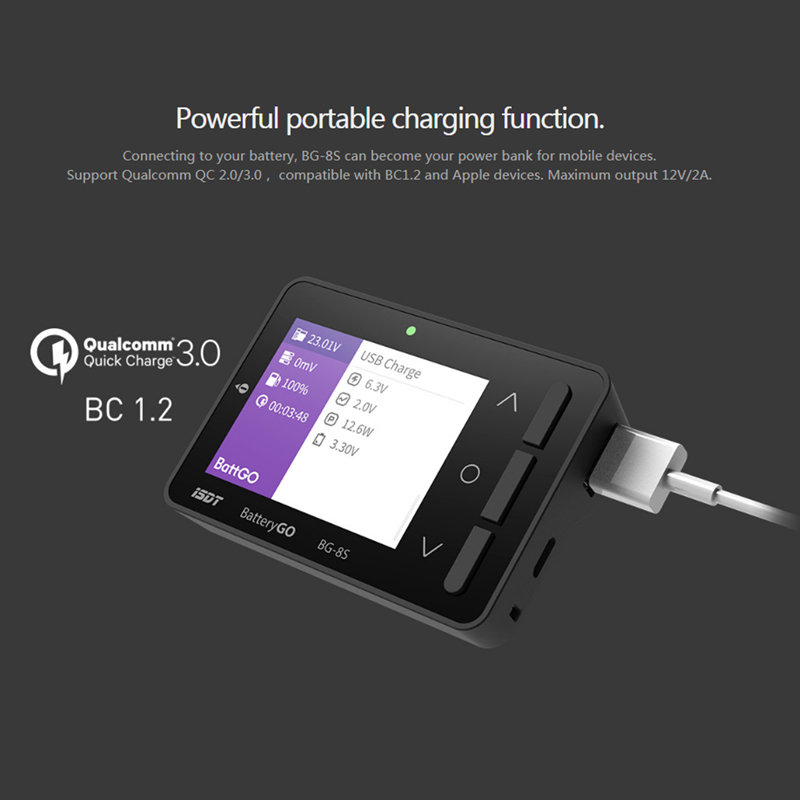

Support Qualcomm QC 2.0/3.0, compatible with BC1.2 and Apple devices

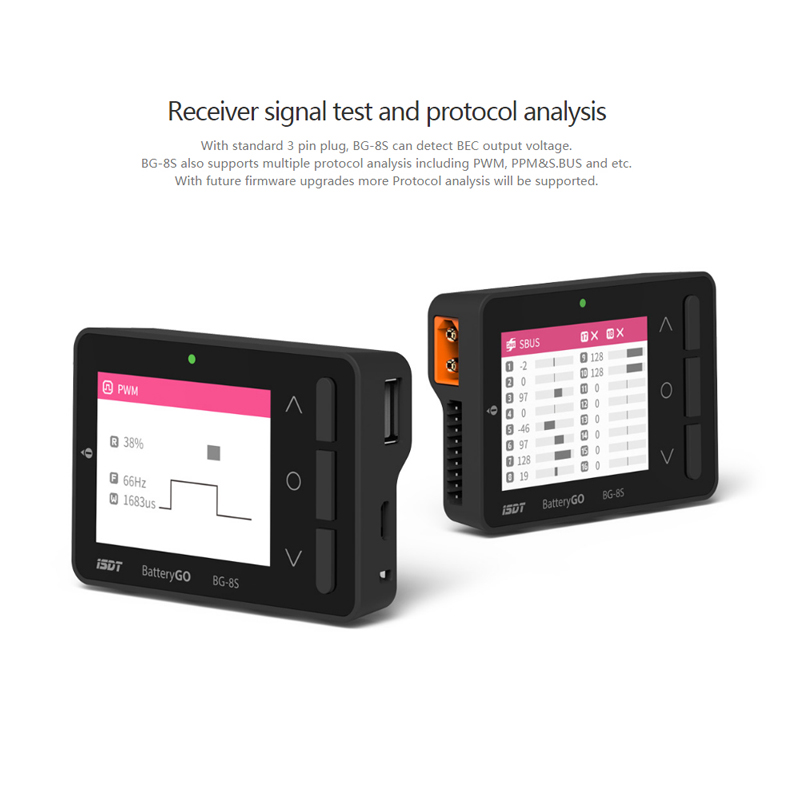

BG-8S also supports multiple protocol analysis including PWM, PPM&S.BUS and etc

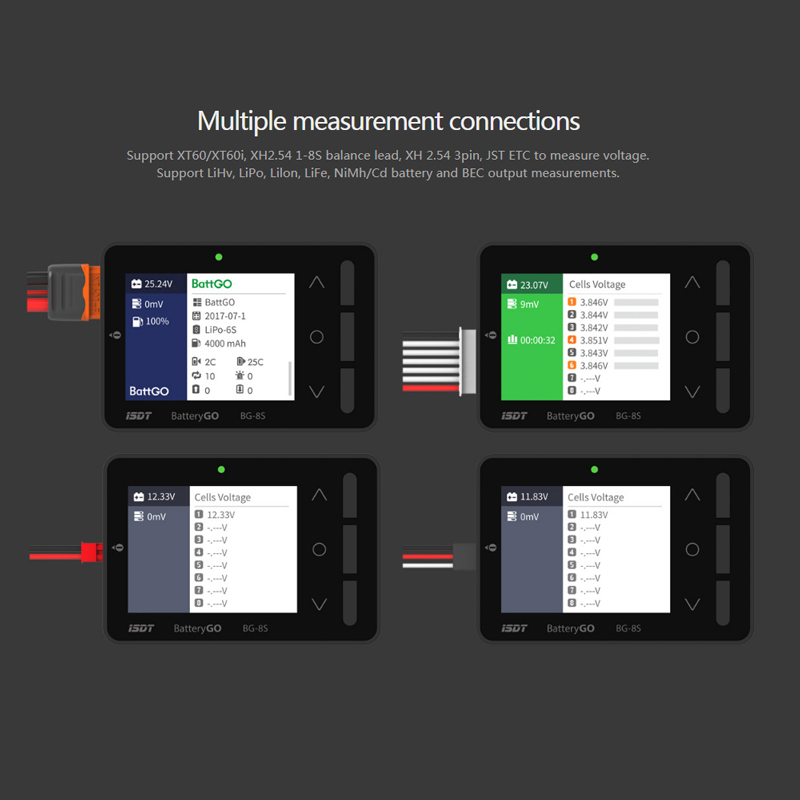

Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements

Specifications:
Brand: iSDT
Item Model: BG-8S
Working voltage: 5.0V-36V
Input voltage 1s: 0.8V-15V
Input voltage 2-8S: 0.8V-4.8V
Battery cells: 1-8S
Voltage measurement accuracy: ±0.005V @ 4.2V
Balancing cells accuracy: < 0.005V
Support USB charging: QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
Supported Batt. Type: LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) / Lilon (1-8S) / NiMH/Cd(1-10S)
Display: 2.4〃320 * 240 260,000 color IPS LCD
Operating Temperature: 0-40℃
Working Humidity: 10%-90%RH (noncondensing)
Storage Temperature: -20-60℃
Storage Humidity: 5%-90%RH (noncondensing)
Item Dimension: 80 * 55 * 19mm
Item Weight: 59g

Package Information:
Package size: 9 * 6.5 * 3cm / 3.5 * 2.6 * 1.2in
Package weight: 96g / 3.4oz
Gift box package

Package include:
1 * iSDT BG-8S Battery Checker
1 * Sling
1 * Screen Protector Film
1 * English Manual
