JX PDI-2504MG metal gear digital coreless servo is suitable for 450 500 helicopter fixed-wing airplane. Small size and light weight is conducive to the flight of RC models. Besides, its high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect for your RC models.
Features:
Waterproof
Dual ball bearings
Small size and light weight
Large stall torgue of 4.52Kg.cm
High performance digital coreless servo
High strength design increase its durablity
High-precision Taiwan-made aluminium gears with hard anodizing
Suitable for RC 450 500 helicopter fixed-wing airplane

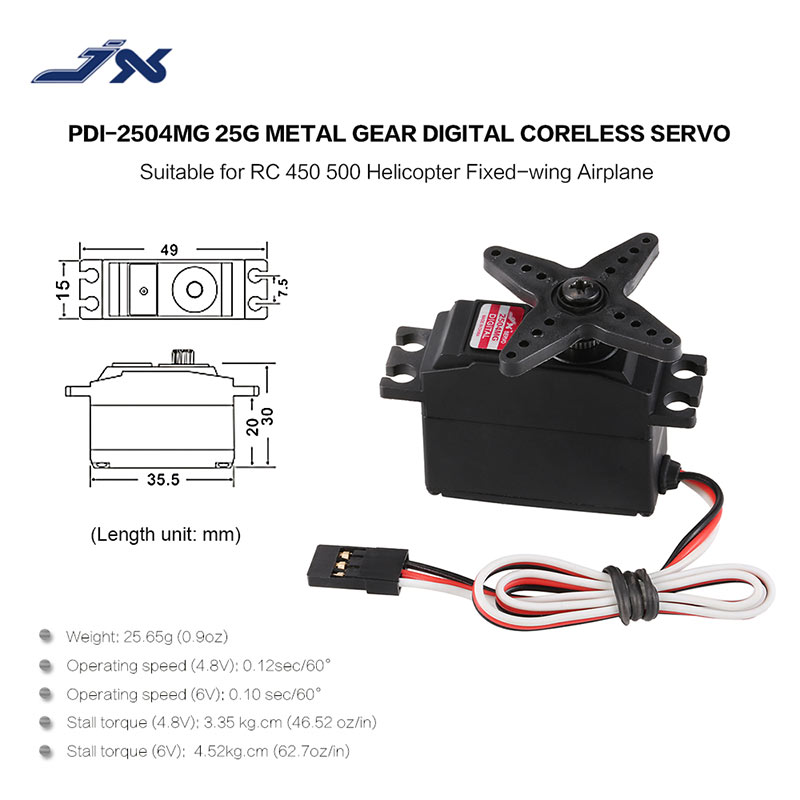

Specifications:
Brand: JX
Model: PDI-2504MG
Dead band: 2μs
Working frequence: 1520μs / 330Hz
Operating speed (4.8V): 0.12sec/60°
Operating speed (6V): 0.10 sec/60°
Stall torque (4.8V): 3.35kg.cm (46.52 oz/in)
Stall torque (6V): 4.52kg.cm (62.7oz/in)
Dimensions: 35.5 * 30 * 15mm
Connector wire length: about 250mm
Bearing: 2BB
Weight: 25.65g
Package information:
Package size: 6 * 6 * 3.3cm / 2.4 * 2.4 * 1.3in
Package weight: 49g / 1.7oz
Brand gift box package
Package list:
1 * JX PDI-2504MG 25g Metal Gear Digital Coreless Servo
1 * Spare Parts Set
