A3 is a small multi-functional quadcopter aircraft with integrated aerodynamics, intelligent control, wireless communication and other advanced technologies, which can realize the functions of analog photo transmission, remote controller, HD aerial photography, intelligent flight, etc. It can play the FPV traversing outdoor freely, and can be connected with abundant DIY accessories. The three-axis hybrid stabilized gimbal camera equipped by the aircraft can take 1080P HD video steadily and preview the image in real time on the remote controller with a 4.3 inch display. The aircraft is light and convenient to carry.
Features:
Functions: Up/down, Forward/backward, Turn left/right, Sideward flight, GPS mode, Headless mode, One key return, Follow me, Orbit, Fixed-wing mode, Dronie, DIY supported, Low battery protection, Losing signal automatic return
HD 1080P camera powered by Ambarella ISP processor and Sony CMOS sensor, provides perfect HD picture and video.
The 2-aixs mechanical and 3-aixs electronic gimbal provides stable and smooth footage in any situation.
With lightweight design, the drone flies faster.
With quick-release propellers, fast and powerful propulsion with durable, well balanced design.
Flight time is up to 25mins with 11.1V 2000mAh lipo battery.
1km range 5.8G real time transmission system.
With DIY port, you can explore your way to play with the drone, like driving a servo, lighting a led or fireworks.
Remote Controller is built-in LCD screen, DVR, and User Interface.
Follow me mode: The aircraft will take the remote controller as tracking target when entering this mode.(only in condition of GPS with at least 6 satellites)
Specifications:
Aircraft
Model: A3
Color: White

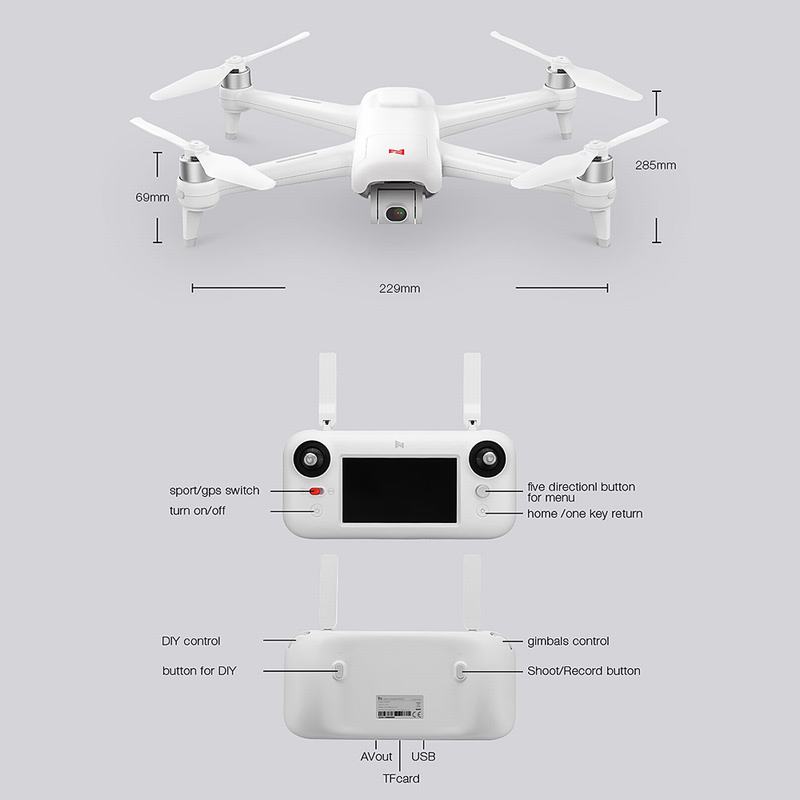

Dimension: 285 * 229 * 69mm
Diagonal Size: 323mm
Weight: 560g
Hover Accuracy: when GPS Positioning is active, Vertical: ± 0.5 m & Horizontal: ± 1.5 m
Max flying speed: 65km/h
Max ascending speed: 6 m/s
Max descending speed: 5 m/s
Max cruising speed: 18 m/s
Max R/C distance: about 1km
Max flying height: about 120m
Flying Limited Altitude: 500 m
Flight time: 25mins
Wind resistance: ≤ 4
Satellite positioning systems: GPS+GLONASS
Operating frequency: 2.4-2.483GHz; 5.725-5.850 GHz (40CH)
Operating temperature: 0-40°C
Battery: 11.1V 2000 mAh 3S Lipo Battery
Remote Controller
Screen resolution: 480 * 272
Screen size: 4.3inch
Frequency: 2.4-2.483GHz; 5.725-5.850 GHz (40CH)
Max R/C distance: About 1000m
Built-in Battery: 2950mAh lipo battery with about 2.5h working time
Voltage: 3.7V
Charge port type: Micro USB
DVR: 720*480 video resolution
Gimbal
Controlled Rotation Scope: 0°~ -90°Pitch angle
Stabilization: 2-aixs mechanical and 3-axis electronical gimbal

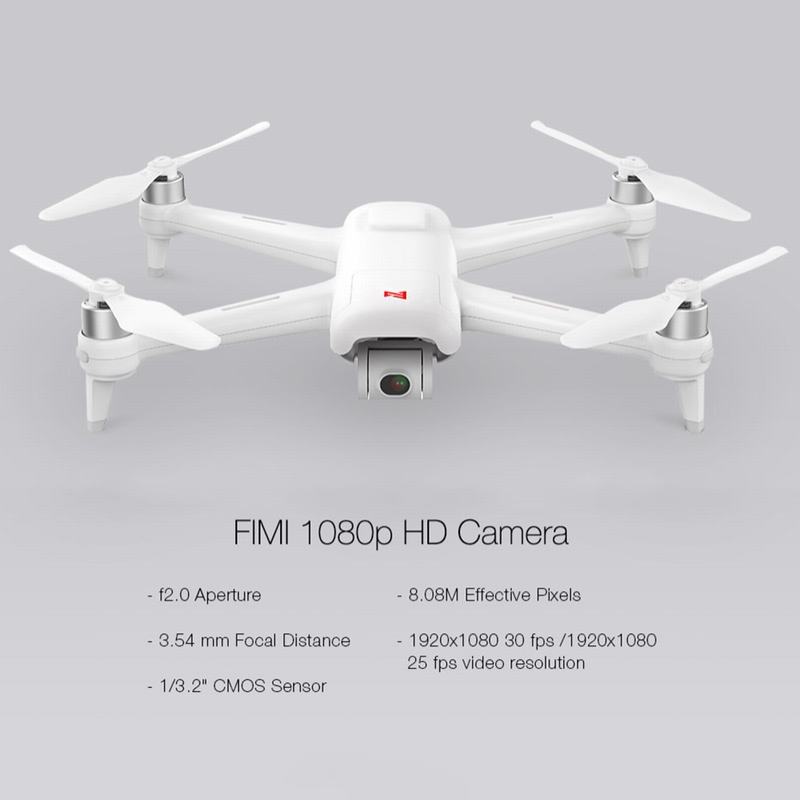

1080P Camera
Lens: FOV 80°
Aperture: f2.0
Focal Distance: 3.54 mm
Equivalent Focal Distance: 27mm
Sensor: 1/3.2" CMOS
ISO Range: 100 - 3200 for video; 100 - 1600 for picture
Shutter Speed: 4 ~ 1/8000 s
Max Bitrate: 60Mbps
Max Photo Resolution: 8M 3264*2448
Video Resolution: 1920x1080 30 fps / 1920x1080 25 fps
File System: FAT32 / exFAT
Image Format: JPG
Video Format: MP4
DVR: 1920x1080 30 fps / 1920x1080 25 fps
Battery
Charging Limit Voltage: 12.75 V
Voltage: 11.1 V
Capacity: 2000 mAh / 22.2 Wh
Weight: about 162g
Propeller
Length: 7.5inch
Pitch: 3.6inch
Package Information:
Package size: 34.4 * 29.3 * 10.7cm / 13.5 * 11.5 * 4.2in
Package weight: 1680g
Gift box package
FAQ:
* Do not continue flying over 3-4 batteries without taking a break, which is no good for the life of the drone.
* The Drone has GPS function. Please fly the drone outside at open places, and make sure that there are at least 6 satellites are received.
* Don't over-charge, or over-discharge batteries. Don't put it beside the high temperature condition. Don't throw it into fire.Don't throw it into water.
* The goggle glass in the picture is not included. There could be some deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understand.
Package List:
1 * A3 Drone
1 * Transmitter
1 * Gimbal
1 * 11.1V 2000mAh Lipo Battery
1 * Propeller set
1 * Charging Cable set
