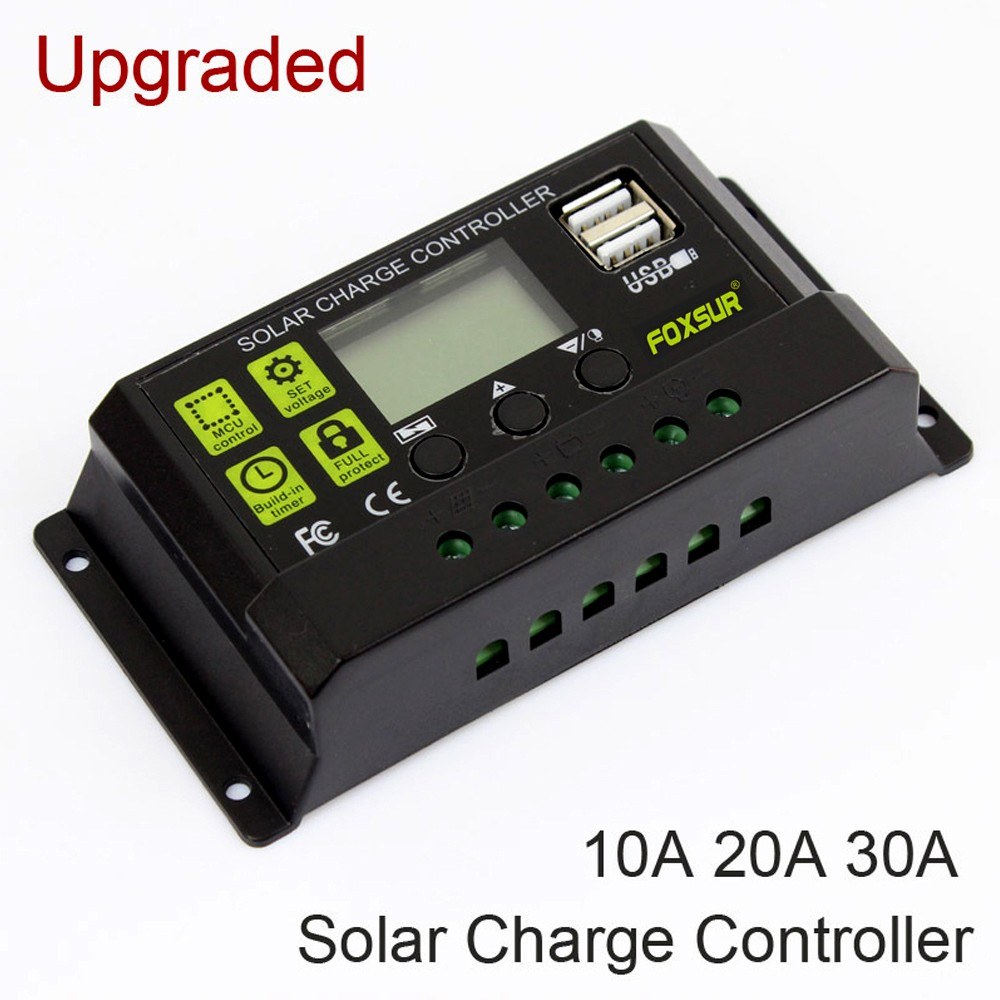

With novel black housing, the solar charge controller is practical to use. Build-in industrial micro controller. Fully 3-stage PWM charge management.
Feature:
Build-in industrial micro controller.
Big LCD display,all adjustable parameter.
Fully 3-stage PWM charge management.
Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.

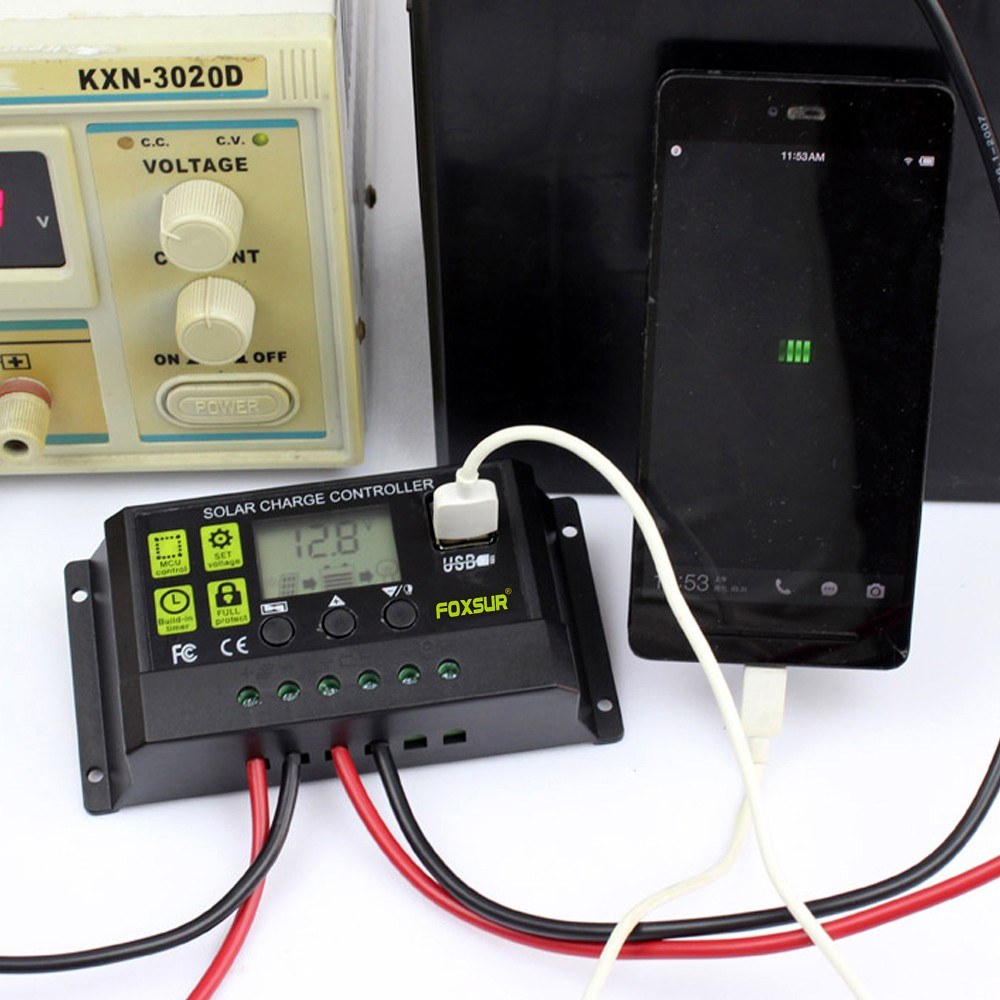

Dual USB output,the maximum current of 2.5A, to support mobile phone charging.
Dual mosfet reverse current protection, low heat production.
Specifications:
Color: Black
Rated voltage: 12/24V AUTO
Charge current: 10A, 20A, 30A (optional)
Max.PV input power:
10A: 120W(12V), 240W(24V)
20A: 240W(12V), 480W(24V)
30A: 360W(12V), 720W(24V)
Solar input:
10A: 15-25V(12V), 30-50V(24V)
20A: 15-25V(12V), 30-50V(24V)
30A: 15-25V(12V), 30-50V(24V)
Equalization:14.6V
Float charge: 13.7V (defaul,adjustable)
Discharge stop: 10.7V(defaul,adjustable)
Discharge reconnect: 12.6V(defaul,adjustable)
Charge reconnect:13V
Voltage of open light:Solar panel 8V(Light lights delay)
Voltage of close light:Solar panel 8V(Light off delay)
USB output: 2 way USB output,5V/2A(Max.)
Self-consume:<10mA
Operationg temperature: -35-60℃
Size: 133.5 * 70 * 35mm / 5.3 * 2.8 * 1.4in
Weight: 100g / 3.5ounce
Package size: 150 * 100 * 70mm / 5.9 * 3.9 * 2.8in
Package weight: 150g / 5.3ounce
Package List:
1 * Solar Charge Controller
