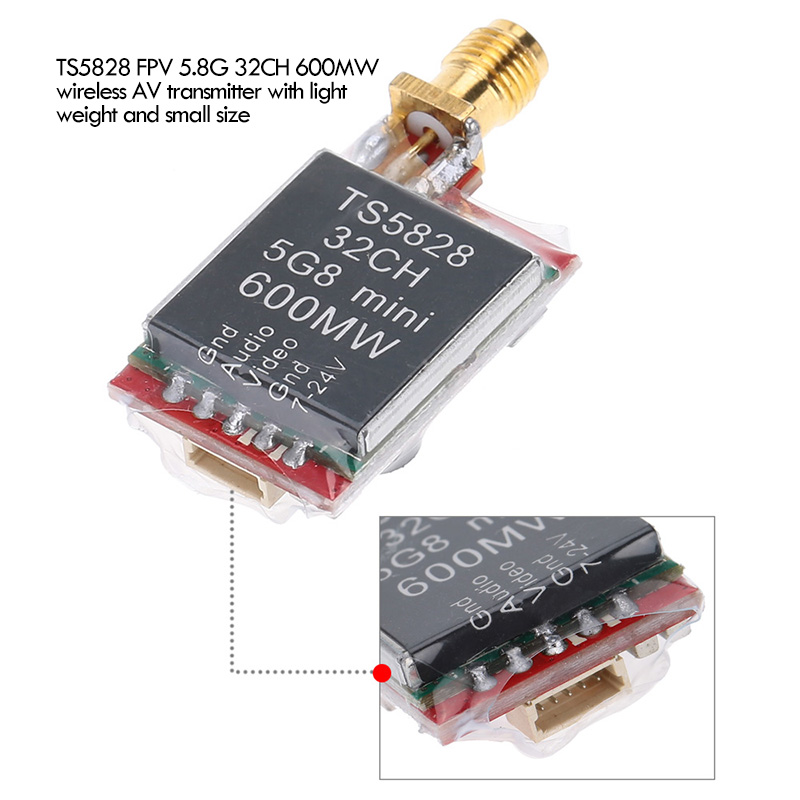

TS5828 FPV 5.8G 32CH 600MW wireless AV transmitter with light weight and small size. 600MW and 7-24V power supply, 32 channels! Support super long transmission distance. A must for those who looking for longer range. it's perfect for a wide range of aircraft!
Features:
600MW power transmission distance
Super light weight and small size
Support wide voltage input (7-24V)
Support 32 channel number in frequency
32 channels: Cover A, B, E bands and F bands
The power offer reverse connect protection, Stable performance without interference
Specifications:
Type: TS5828
Frequency: 5.8GHz
Video format supported: NTSC/PAL
Power: 600mW/27DB max
Work voltage: 7-24V(3s LiPo battery suggested)
Work vurrent: 300mA at 12V
Channel: 32CH
Video band width: 8Mhz
Audio band width : 6.5Mhz
Dimension: 28 * 19 * 7.7mm(excluding antenna)
Weight: 7g
Plug: RP-SMA-K connector
Usage: for DJI Quadcopter multicopter
Frequency Range:
FR1: 5865,5845,5825,5805,5785,5765,5745,5725
FR2: 5733,5752,5771,5790,5809,5828,5847,5866
FR3: 5707,5685,5665,5645,5885,5905,5925,5945
FR4: 5740,5760,5780,5800,5820,5840,5860,5880
Package Information:
Package size: 9 * 4.5 * 1.5cm / 3.5 * 1.8 * 0.6in
Package weight: 29g / 1oz
White box package
Package List:
1 * TS5828 Transmitter
1 * Black Antenna
2 * Cable
1 * English Manual
