Features:
Avoid losing steps and jittering, good heat dissipation, immersion gold process, ultra quiet.
Large heat dissipation area, good heat dissipation effect.

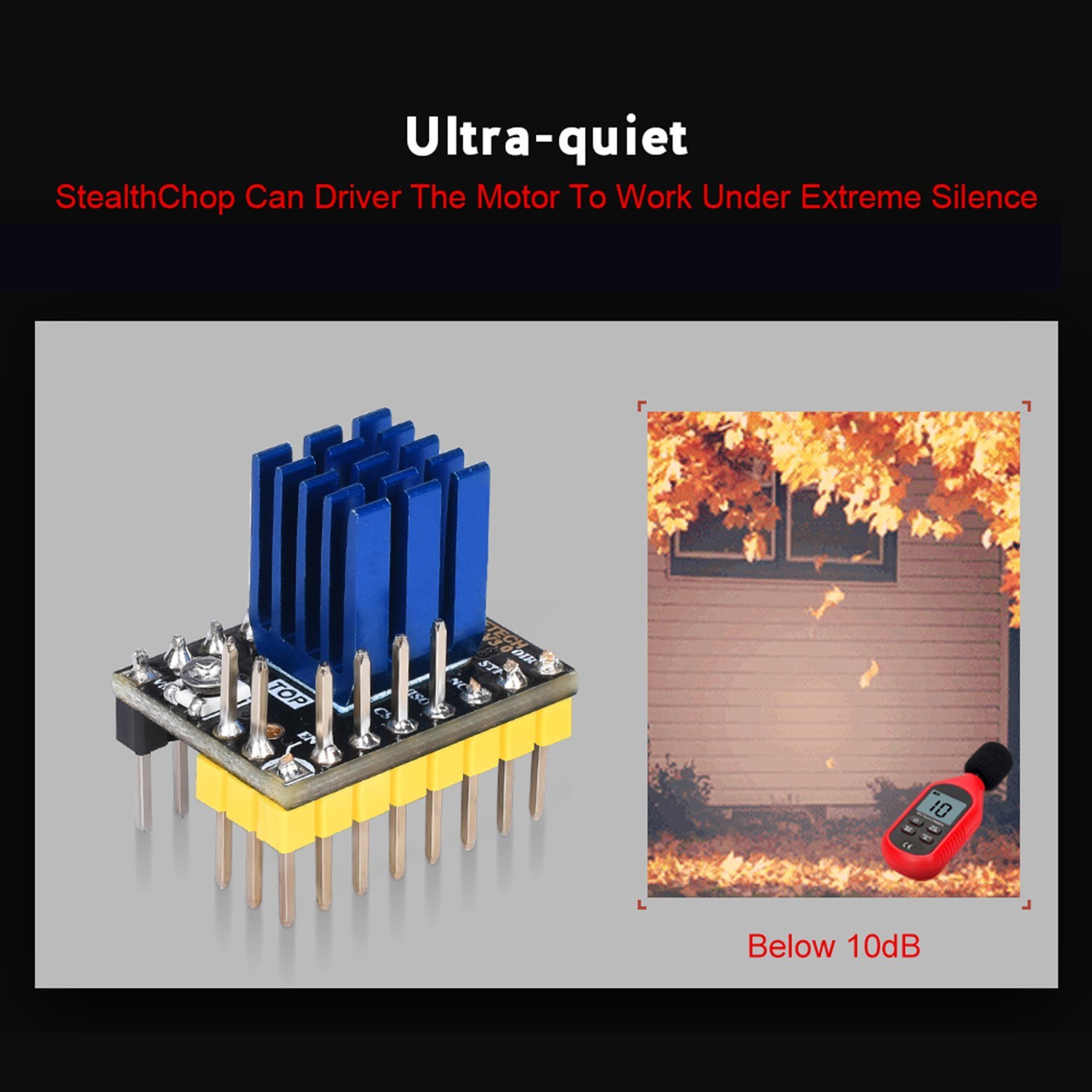

StealthChop can driver the motor to work under extreme silence.
SpreadCycle: The motor controlled by the PWM chopper mode operated more smoothly and without jitter.
It can effectively avoid problem such as running deviation losing step and fault caused by the overlong of the chip.
Specifications:
Configuration: STEP/DIR or SPI(Optional)

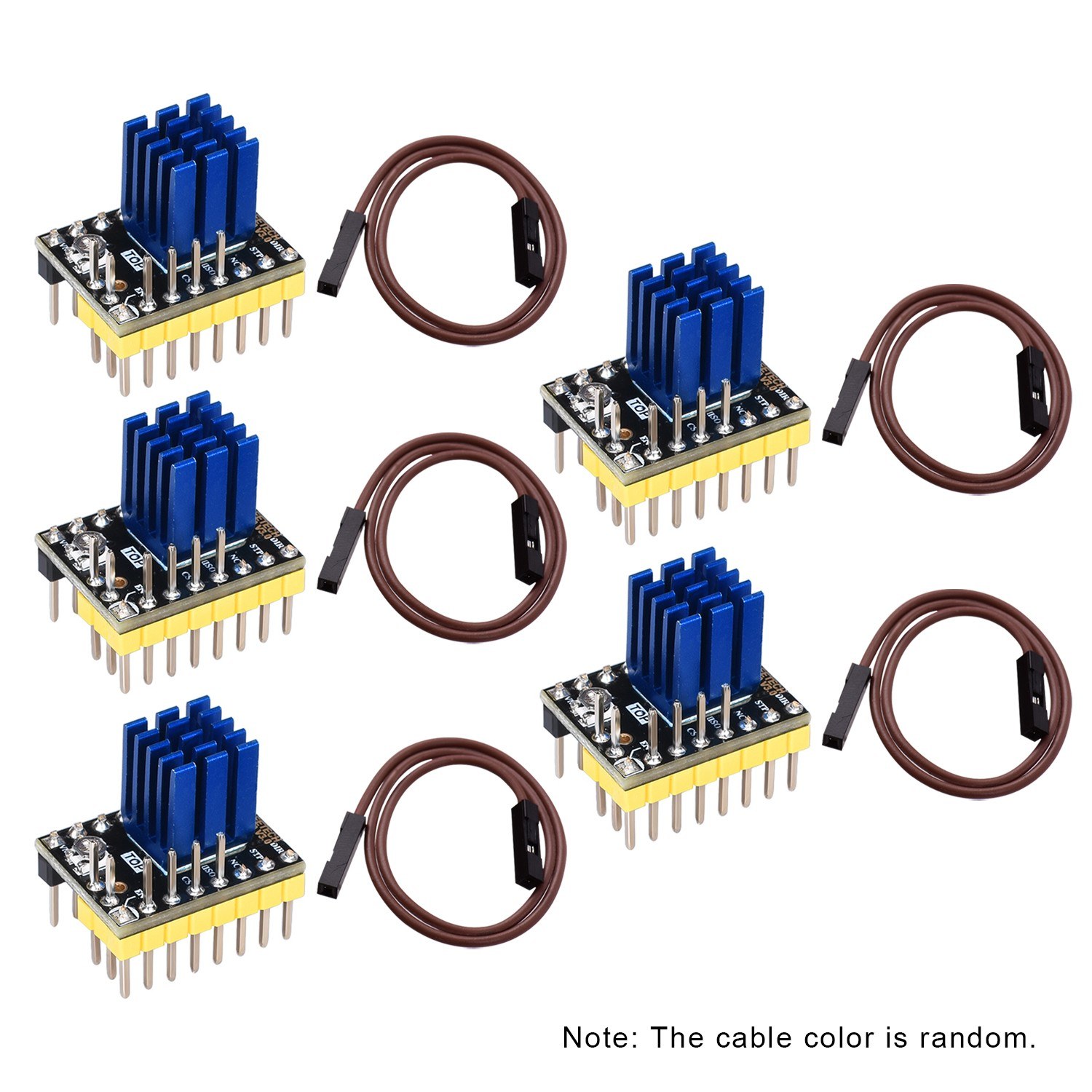

Quantity: 1pc/4pcs/5pcs(Optional)
Microsteps: Up to 1/256
MicroPlyer: 1/256
Logic Voltage: 3.3V/5V
Input Voltage Range: 12V/24V DC
Motor Phase Current: 1.2A RMS,2.0A Peak
COOLSTEP: Current control for energy savings up to 75%
Passive Braking: And freewheeling mode
Item Size: 2.0 * 1.5cm / 0.8 * 0.6in
Package Size: 5.5 * 4.5 * 3.0cm / 2.2 * 1.8 * 1.2in(1pc)
9.9 * 5.9 * 3.6cm / 3.9 * 2.3 * 1.4in(4pcs)
9.9 * 5.9 * 3.6cm / 3.9 * 2.3 * 1.4in(5pcs)
Package Weight: 14g / 0.5oz(1pc)
38g / 1.3oz(4pcs)
42g / 1.5oz(5pcs)
Packing List:
1 * Driver
1 * Heat Sink
