Overview:
This WiFi super mini 2.5in middle speed PTZ dome camera with cute and compact design, but still with powerful functions. It takes less space, and can meet your needs of different installation occasions. It features in P2P plug and play, auto-focus 2.8-12mm lens, HD 1080P video recording, and it's equipped with 3pcs array infrared LED lights, and built in IR-CUT, no color cast, which provides good day and night vision. It is also with functions of motion detection, waterproof, TF card slot, and phone APP control, etc. It is a good choice for home, shop, office and other needed places.
Features:
*Waterproof WIFI camera, 1/2.7'' CMOS sensor, 1080P high definition, having clear image.
*2.8-12mm 5X optical zoom auto focus lens. The auto focus enables the camera to focus automatically to main clear image.
*Support Pan tilt rotation, 0°~355° horizontal and 0°~90° vertical viewing angle, wide monitoring area.
*Providing for Android & IOS APP and multi-channel CMS PC client software and browser.
*Motion detection function. The camera will be triggered to snapshot and push notification when detects something moving.
*Alarm Action: Support Snapshot and Record uploaded to FTP
*With 3pcs array infrared lamps, night vision distance up to 50m.
*IR-CUT double filter. Auto switch between day and night, restoring clear true color.

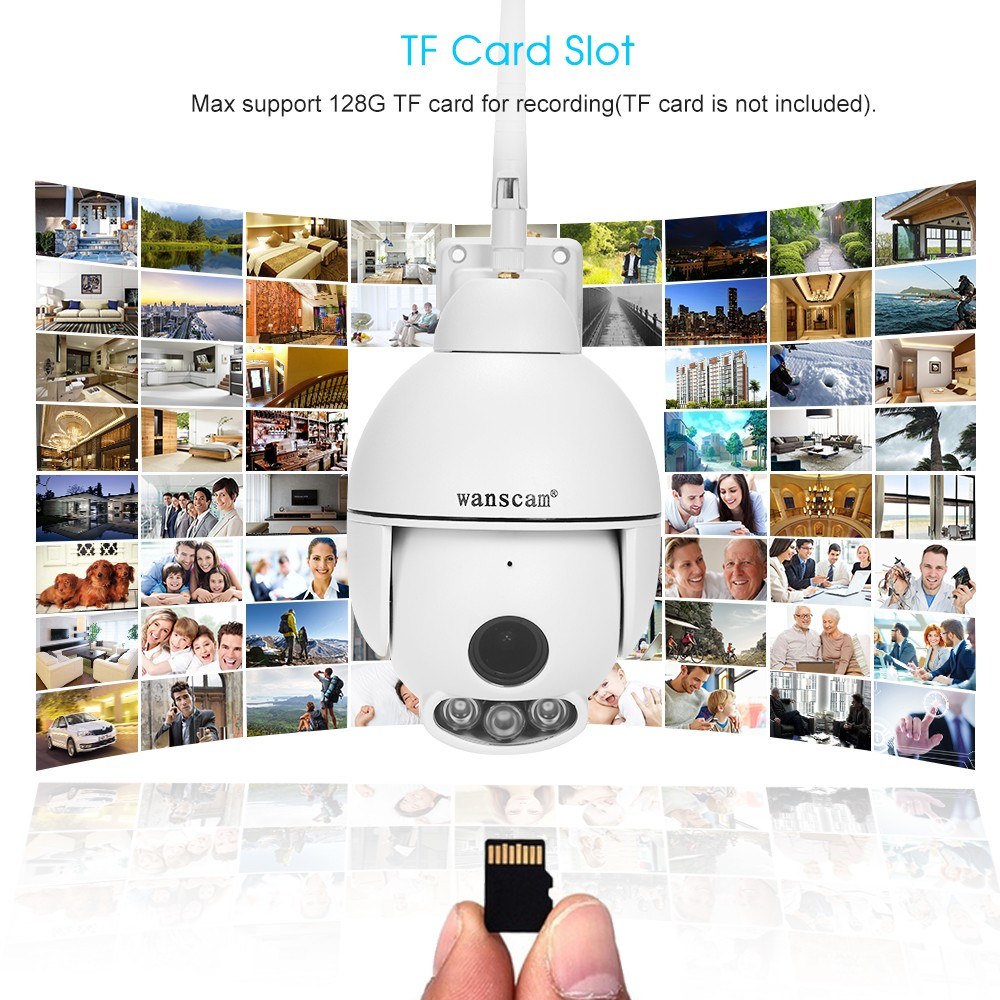

*Support up to 128G TF card storage (
not included).
*P2P cloud function, peer to peer connection, no need port mapping.
*H.264 video compression, higher definition image and lower bit rate.
*Onvif protocol standards, compatible with various NVR brands.
*System Security: Supports there-level account, password, user authority management.
*Multi-languages Function: Support 12 language remote surveillance, record, alarm, WIFI setting etc.
Specifications:
Power Supply: DC12V/2A
OS: Embedded Linux OS
Processor: Hi3516C
Image Sensor: 1/2.7" CMOS Sensor
Compression: H.264
Pixels: 2.0MP megapixels
Image Frame Rate: 50Hz:25fps / 60HZ:30fps (1920×1080)
First Stream: 1080P(1920×1080),720P（1280x720）
Second Stream: VGA-(640x352),(320x176)
Lens: 2.8-12mm 5X optical zoom auto focus lens
Rotation angle: Horizon: 0°~355°; Vertical: 0°~90°
Rotation Speed Range: Pan 5°~50°/S, Tilt 5°~30°/S
Preset: Support 8 Preset Positions
Infrared lamp: 3 array IR Led lights
Night Vision: Up to 50M
Min. illumination: 0 Lux (IR on)
Day & Night mode: Auto IR-CUT filer
Audio In: Built in Mic, also external supported
Audio Out: Built in Speaker, also external supported
TF Card Slot: up to 128G (
not included)
Ethernet Interface: One 10/100Mbps RJ-45
WiFi Protocol: 802.11b/g/n, 2.4GHz
Supported Protocol: TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
APP Name: WANSCAM, support Android/iOS OS
PC CMS: Support Microsoft Win XP/Win7/Win8/ win10/Mac OS
Browser: Support Internet Explorer 8.0-11.0, FireFox,Google Browser, etc
12 Languages: English,Chinese,French,Swedish,Spanish,Portuguese,Italian,German,Russian,Korean,Dutch,Japanese,Polish
Alarm Linkage: Snapshot, record, FTP upload, etc.
Onvif: Support
Camera Size: 2.5in
Material: Metal
Waterproof Grade: IP66
Camera Size: Approx. 16*16*5.5cm / 6.3*6.3*2.2in(L*W*H)
Camera Weight: Approx. 875g / 30.9oz / 1.9lb
Package Information:
Package Size: Approx. 20.5 * 20.5 * 13.8cm / 8.1 * 8.1 * 5.4in
Package Weight: Approx. 1264g / 44.59oz / 2.79lb
Package List:
1* IP Camera
1* Antenna
1* US Power Adapter
1* Network Cable
1* Bag of Mounting Screws
1* Screwdriver
1* User Manual (English)
1* CD Disc
