Overview:
This cost-effective kit comes with 4 components: The SmartONE, a door sensor, a motion sensor (PIR) and a key fob remote. Connected with these smart sensors, SmartONE will push notifications to keep you informed on what's happening when you're not around - depending on what you've programmed it to monitor.
Features:

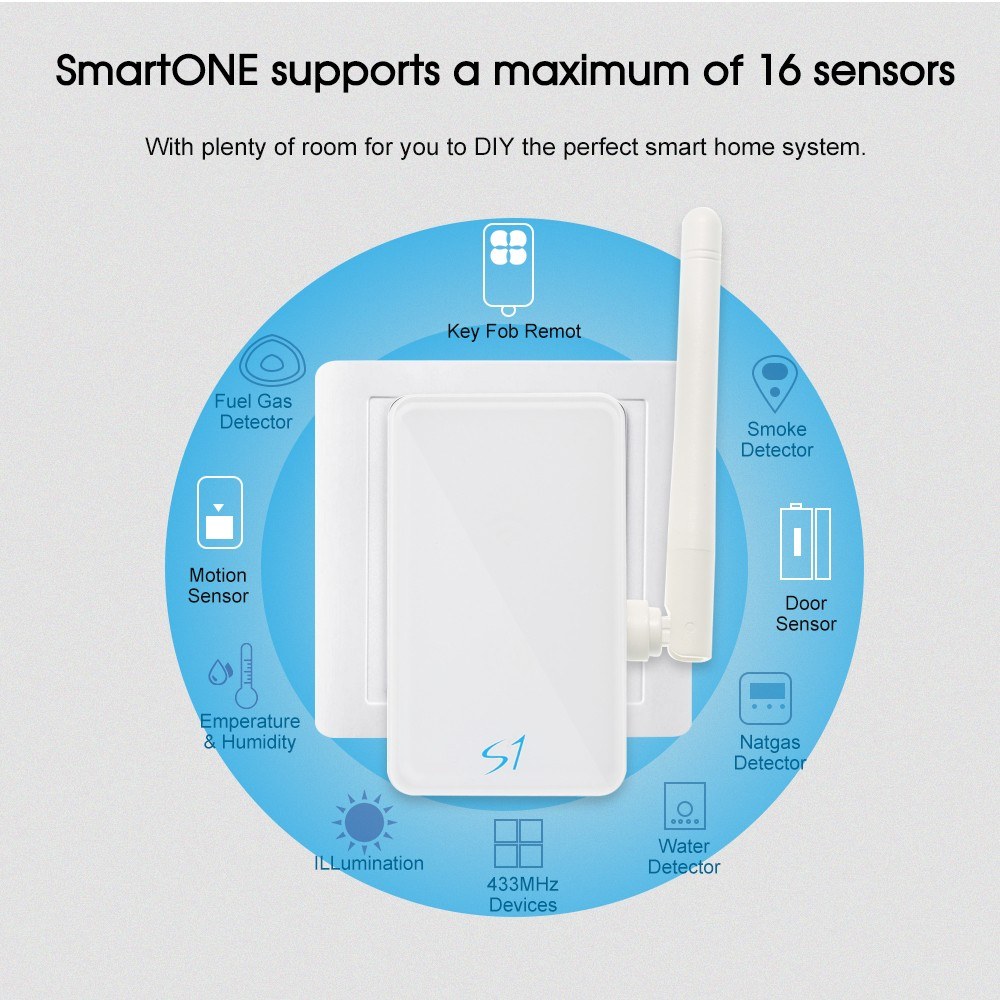

*SmartONE supports a maximum of 16 sensors: With plenty of room for you to DIY the perfect smart home system.
*APP Remote Control: Including pushing alarming notification, inquiring history alarm state, adding sensors, sensor low power notification, etc.
*Take Home in Your Pocket: S1C receives the signal from sensors and pushes the notification to your phone APP or triggers the functioning of other connected devices.
*Easy to Set up: One-button configuration and fast connection, simply scan a barcode to add sensors. Monitor real-time states and check historical data at any time. Push notifications to keep.
*Take Care of the People You Love & Anti-burglar: The motion sensor detects movement within its coverage area and notifies you with the APP.
*Keep an Eye on Your House: The door sensor detects when windows are opened or closed, and can be set to send notifications when this happens, or send signals to activate other smart devices.
*Smart Thing Makes Everything Possible: When you come home, the IFTTT-style interaction functions of SmartONE enables you set Auto Home mode to trigger, connecting to your smart-compatible lights, music player or even your heating system so your house is ready for you.
S1C Specifications:
Product Name: Home Alarm Kit
Model No.: S1C
Power Supply: 100-240V AC 50/60Hz
Standby Power Consumption: ≤2W
Working Frequency: 433.92MHz
433MHz Sensitivity: -110dB
Max. Access Number: 16 Circuits
Supported OS: iOS 7.0/Android 4.0 and above
Wi-Fi Frequency: 2.4 GHz 802.11 b/g/n
Material: V0 grade Fire-retardant PC
Operating Temperature: 0~55℃
Working Humidity: ≤85% RH
Item Size: Approx. 7.6 * 4.5 * 3.8cm (L*W*H)
Item Weight: Approx. 85g / 3oz
433MHz Motion Sensor Specifications:
Product Name: Motion Sensor
Input Voltage: DC 3V 2*Alkaline Battery (
not included)
Current Consumption: Alarm:<15mA, Standby:<15uA
Transmission Frequency: 433MHz
Detection Range: ≤12m@25℃
Wireless Transmission Distance: 30m (in open area)
Alarm Indication: LED indicator light >3s
Max. Coverage: 12m*12m/90°

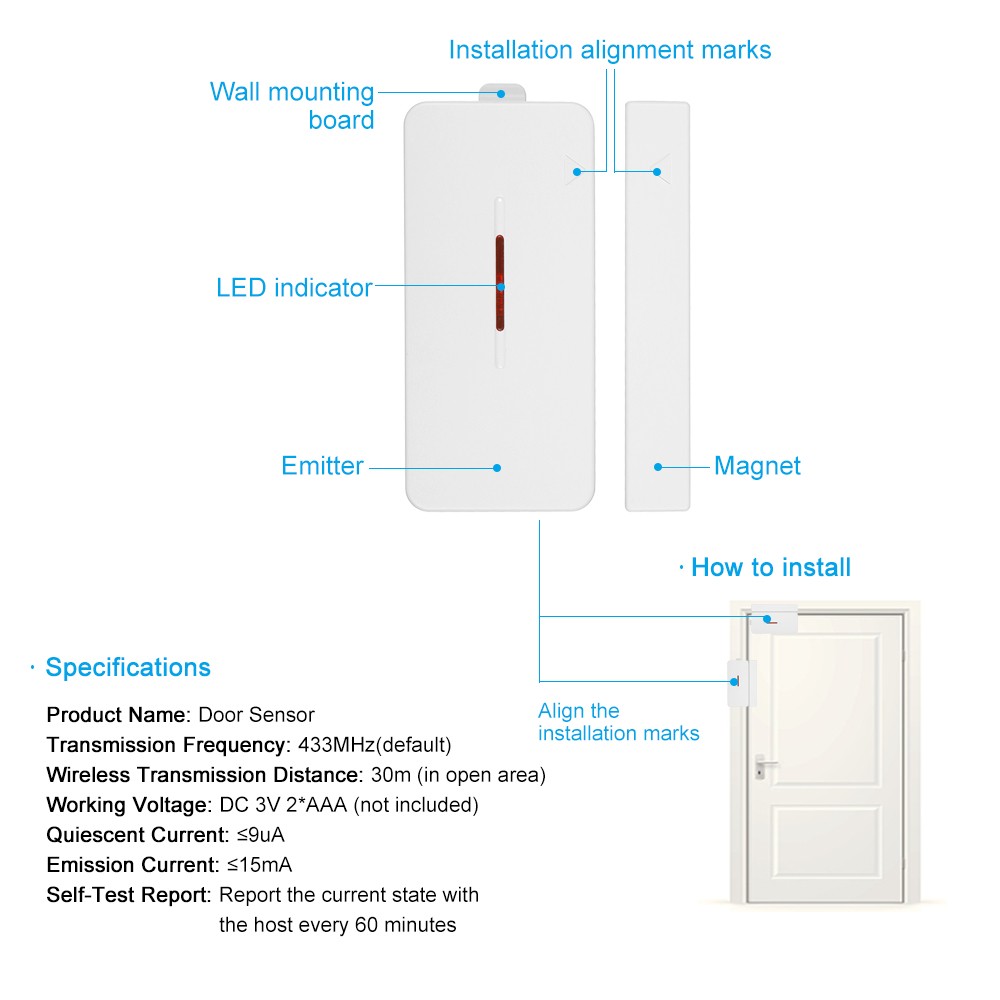

433MHz Door Sensor Specifications:
Product Name: Door Sensor
Transmission Frequency: 433MHz(default)
Wireless Transmission Distance: 30m (in open area)
Working Voltage: DC 3V 2*AAA (
not included)
Quiescent Current: ≤9uA
Emission Current: ≤15mA
Self-Test Report: Report the current state with the host every 60 minutes
433MHz Key Fob Remote Specifications:
Product Name: Key Fob Remote
Transmission Frequency: 433MHz
Wireless Transmission Distance: 30m (in open area)
Working Voltage: DC3V CR2032 battery (
not included)
Quiescent Current: ≤1uA
Working Current: ≤15mA
Information Emission:Push the button for 1 second at least, and the LED light flashes
Package Information:
Package Size: Approx. 25 * 14 * 6.5cm / 9.8 * 5.5 * 2.6in
Package Weight: Approx. 351g / 12.4oz
Package List:
1 * Broadlink S1C Alarm Host
1 * Wireless PIR Motion Sensor
1 * Bracket for PIR Sensor
1 * Wireless Door / Window Sensor
1 * Sticker of Door / Window Sensor
1 * Remote Controller
1 * Set of Mounting Screws
1 * User Manual
1 * USB Cable
